Category:Air Conditioning & Heating
Goods No. : HGD3254
Advantages: 1. 20 Years AC Evapor ators and Condensors Manufacture 2.Offer one stop services of car; bus and truck Air Conditioning and Refrigerator 3.Welcome OEM orders 4.Flexible MOQ and excellent cost performance 5. 360 QA system , having advanced testing machine 6.Trained and experienced sales team to solve pre-sales or after-sales problem for customers Application: Truck, Tractor, Digger, Trailer,Excavator, Agricultural vehicles, Pickup,etc. Heating principle: Using the engine coolant to heat the air vent core Electric compressor data: Voltage: DC 12V Current: 63A Rated speed: 2100rpm Speed range: 1500rpm - 2100rpm cooling capacity:1000-2000W Rated power: 650w Condensing temperature range: 26.7℃ - 68℃ Evaporating temperature range: -10℃ - 12.
Condition New
Mounting Style Assemble kit
BTU 12000
Size 14*18inch
Items Included Mounting Hardware
Refrigerator oil EMKARATE RL68H/100ml
Manufacturer Part Number Does not apply
Material Aluminum, Metal
Vintage Part No
Brand Unbranded
Function Heat & Cool
Type A/C Evaporator
OE/OEM Part Number Under dash air conditioner
Manufacturer Warranty 1 Year
Voltage DC 12v
Deatails DC 12V / 45-60A
Fitment Truck；Van ；Pickup；motorhome etc
Features 100% Leak Tested, Durability Tested, No Drilling/Modification Needed, Patent Part
Country/Region of Manufacture China
Power 960w
100% BRAND NEW, HIGH QUALITY
STRICT QUALITY CONTROL, EACH PRODUCT IS FULLY INSPECTED BEFORE SHIPMENT
FREE AND FAST DELIVERY WITH TRACKING NUMBER
PRODUCT CERTIFICATE
⭐⭐⭐⭐⭐CE,FC,ROHS,PSE
VERSIONS
⭐⭐⭐⭐⭐2025 NEW UPGRADE VERSION
Advantages:
1. 20 Years AC Evapor ators and Condensors Manufacture
2.Offer one stop services of car; bus and truck Air Conditioning and Refrigerator
3.Welcome OEM orders
4.Flexible MOQ and excellent cost performance
5. 360 QA system , having advanced testing machine 6.Trained and experienced sales team to solve pre-sales or after-sales problem for customers
Application:
Truck, Tractor, Digger, Trailer,Excavator, Agricultural vehicles, Pickup,etc.
Heating principle: Using the engine coolant to heat the air vent core

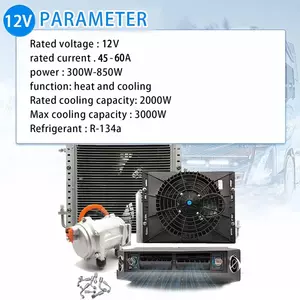

Electric compressor data:
Voltage: DC 12V
Current: 63A
Rated speed: 2100rpm
Speed range: 1500rpm - 2100rpm
cooling capacity:1000-2000W
Rated power: 650w
Condensing temperature range: 26.7℃ - 68℃
Evaporating temperature range: -10℃ - 12.5℃
Oil: RL68H/130ml

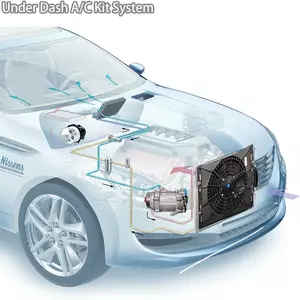

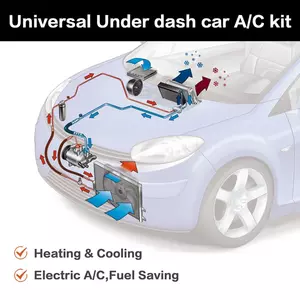

Auto air conditioner system universal 12 volt ac compressor kit | |
Compressor Type |
Semi-closed Horizontal Scroll Compresso |
Condenser Parallel Flow |
14x20 in(18mm core depth)4 Rail Aluminum |
Evaporator Under-Dash |
BEU-404-100 |
HOSES |
#6 5/16 = 6 FT #8 13/32 = 4 FT #10 1/2 = 5 FT W/FITTING and CLAMP FILTER |
Drier W/Pressure Switch |
2.5 X 7.5 in 3/8MIO X 3/8MIO W/ 1/4 CP ROI |
Condenser Fan |
10″ Diameter 12 Volts 80W 6 AMP Reversible – 4 Mounting Brackets included |
AC Conditioner |
HIGH QUALITY CASE 32 pass 4way all Aluminum coil expansion valve 1.5 Ton, thermostat and rotative 3speed blower switch |
BEU-404-000(Under-Dash) | |
Evaporator |
32 Pass 4Ways |
Temp. |
Electric Thermo. |
Air Flow |
3 Speed |
Max Air Vol. |
12V-600 M3/hr |
BTu |
13700 |
Cooling Capacity |
12V-3619kcal |
Power |
12V 7.6A |
Weight |
4.8kg |
Dimension |
40*32*14(cm) |
Drive Type |
LHD |
Inlet |
Oring/Flare |
Volt |
12V |
Features |
Single Cool |

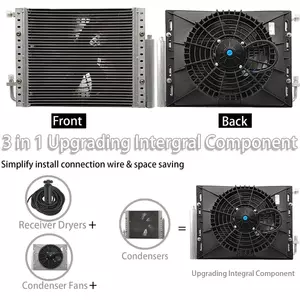

1*Condenser*Fan*Dryer Bottle（Dimension：14*18*26cm with bottle，OR interface）
Fan（14*18-12V ，including 2P mother shell + 6.3 inserts) with carton）
1*Outlet
1*Integrated Electric Compressor

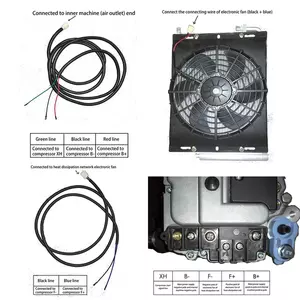

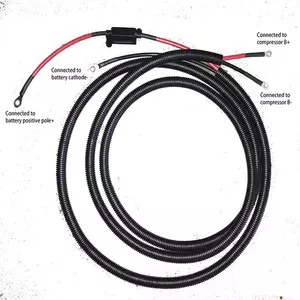

1.Wiring Harness
1*Fittings Kit
